Karakuri Training Units

Miniature karakuri training units are the perfect tool for lean engineers, maintenance technicians, and operators. Easy to build, these kits teach how and why karakuri automation works.

About Miniature Karakuri

SUS America offers two types of miniature training kits: mechanisms and structures.

Miniature mechanisms focus on a single karakuri element such as a stopper or turn. These are ideal for individuals with experience building whole structures who want to focus on specific simple automation elements. Miniature structures are scaled-down replicas of traditional karakuri structures. Building and rebuilding these units provides both karakuri and structural assembly training.

minikarakuri_image

Every kit includes a full parts list and assembly guide.
Step-by-step instructional videos are also available on our YouTube Channel.

Miniature Karakuri Lineup

USM-001
Miniature Flip-Flop Chuter

USM-001

Miniature Info

Dimensions

W173mm x D316mm x H306mm

Full-sized Unit Info

Full-sized Application Video

https://youtu.be/pidfX3ZsOo4

USM-002
Miniature 90º Turn Mechanism

USM-002

Miniature Info

Dimensions

W204mm x D281mm x H330mm

Full-sized Unit Info

Full-sized Application Video

https://youtu.be/DlRcbIdq5gI

USM-003
Miniature Horizontal Turn Mechanism

USM-003

Miniature Info

Dimensions

W178mm x D278mm x H134.5mm

Full-sized Unit Info

Full-sized Application Video

https://youtu.be/isiRruGTtK0

USM-004
Miniature Stopper (See-saw) Mechanism

USM-004

Miniature Info

Dimensions

W253mm x D306mm x H291mmm

Full-sized Unit Info

Full-sized Application Video

https://youtu.be/LZZooJvRfUc

USM-005

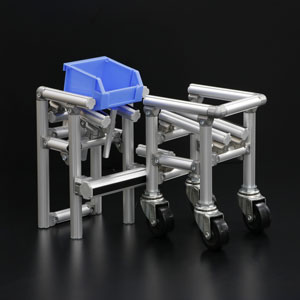

Miniature AGV Tote Transfer

USM-0052

Miniature Info

Dimensions

W188mm x D119mm x H311.5mm

Full-sized Unit Info

DWG

GFUUSA0668 (AGV Chuter)
GFUUSA0667 (AGV Trolley)
Ready Solution Catalog p. 66

Full-sized Application Video

https://youtu.be/kvAhPL8Nj74

USM-006
Miniature Horizontal Turn Chuter

USM-006

Miniature Info

Dimensions

W323.85mm x D406.4mm x H241.3mm

Full-sized Unit Info

Full-sized Application Video

https://youtu.be/04eFBVpD-ck

USM-007
Miniature Intermittent Stopper Chuter

USM-007

Miniature Info

Dimensions

W165.1mm x D425.45mmx H171.45mm

Full-sized Unit Info

Full-sized Application Video

https://youtu.be/LZZooJvRfUc

USM-008
Miniature Incremental Conveyor

USM-008

Miniature Info

Dimensions

W203.2mm x D520.7mm x H203.2mm

USM-009
Miniature Reel Lifter Mechanism

USM-009

Miniature Info

Dimensions

W306mm x D254mm x H340.36mm

Full-sized Unit Info

USM-010
Miniature Intermittent Stopper Mechanism

USM-010

Miniature Info

Dimensions

W179mm x D314.4mm x H203mm

Full-sized Unit Info

Full-sized Application Video

https://youtu.be/Z3f7u7Kd8NA
