About Unit Design

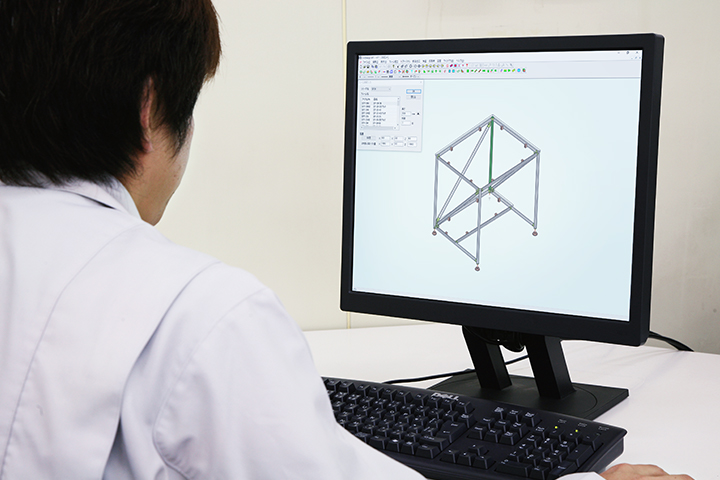

With the free-for-use software "Unit Design", anyone can create technical drafts with ease.The Free Download for SUS's unique 3D drafting software "Unit Design" can be used for any purpose. It utilizes a library that includes both SF structures and GF aluminum pipes. Simply preparing the 3D Model automatically generates a parts list and drawing. With this software, you can break free from the complicated parts lists that are drafted with traditional 2D CAD softwares.
Present your ideas in 3D using our easy, accurate, and speedy software.
Easy to use
- With the 3D demonstration, you can check every angle with just a click of the mouse.
- The parts list and draft are automatically generated.
- Equipped with the ability to automatically check that no frames are overlapping, as well as use compatible connectors with just the touch of a button.
- Only items compatible with your selected parts are made available.
- These conveniences shorten the time taken between your quote and receipt of your order.
- The software responds quickly to changes in your specifications.
- The program utilizes a parts library to reduce worktime.

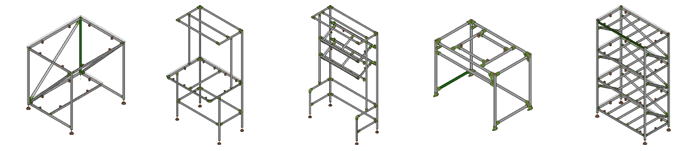

Templates to Start You Off
Templates for everyday structures are ready to be downloaded.
Just log into your Business User account. The downloadable files are compatible with the Unit Design software.
Step-By-Step: Download, Quote, and Order
Unit Design has a trial period of 14 days from when it is first opened, during which it can be freely used.
Getting Started (Trial period)
Downloading the software is free. Go to the download request form to register.
Installing Unit Design
After successfully submitting the download request form, you will be provided a download link for Unit Design package, which includes installation file as well as PDF manual.
Create drawing referring to instruction.
Requesting Quote and placing Orders
Once your CAD work is complete, compress the resulting file (with .UNITProduct extention) and send it to our designated email address. Our representative will contact you with pricing information.
After the trial period expires
Application ID Verification and Transmission
The Application ID that you received when signing up is necessary to generate the license authentication key.
Confirm your Application ID, then enter it into the Licence Authetication Entrance Window.
Issuing the License Authentication Key
Our company will provide you with your license authentication key within six (6) business days of submitting your Application ID.
License Authorization Key Registration
Registration is complete once you enter the license authorization key into the program.
Your license authorization key is good for one full year after registration. After that, you may download the software again.
